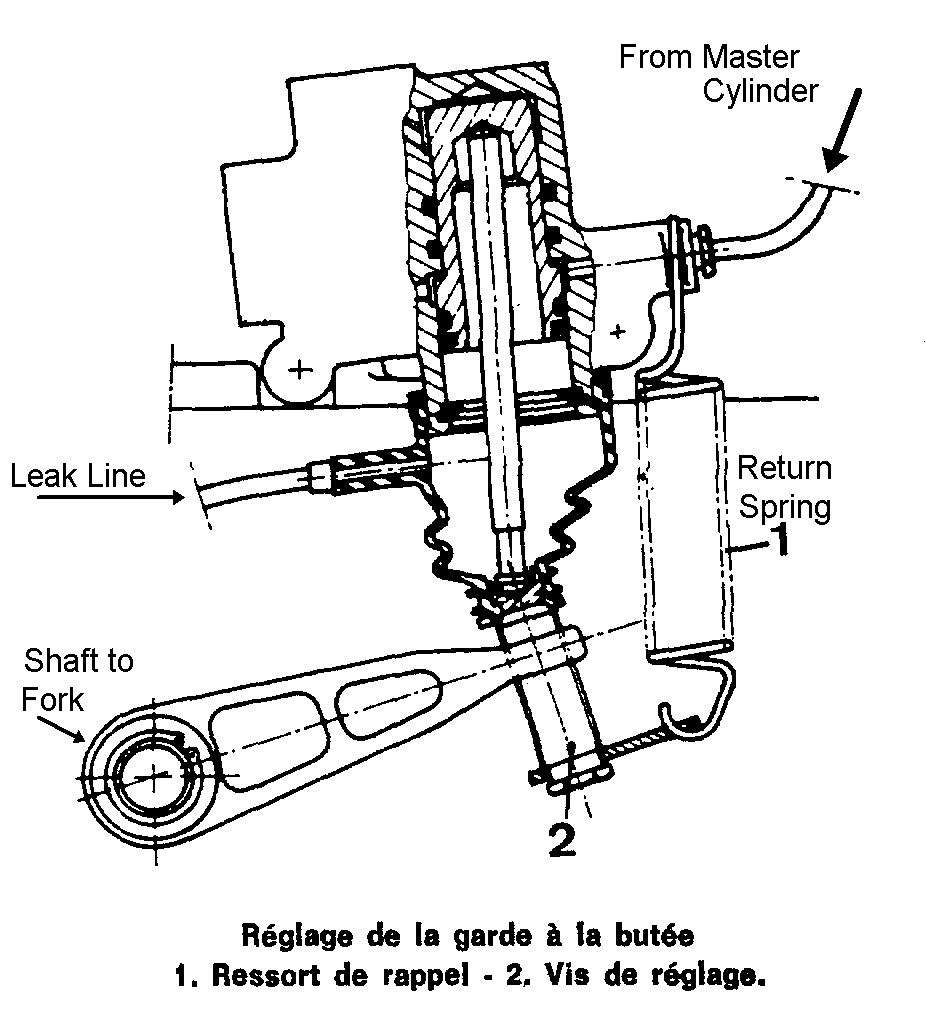

Here's the slave cylinder, which is located under the transmission
casing. This diagram is as though you are looking up at the
underside of the transmission.
The Slave Cylinder / Clutch Actuator:

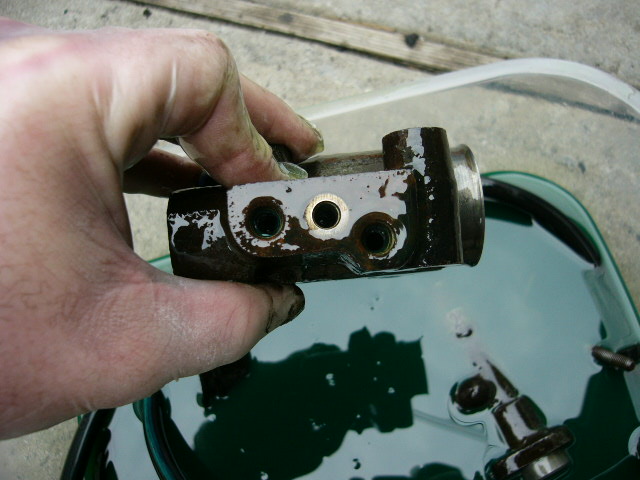

The input from the master cylinder (1)

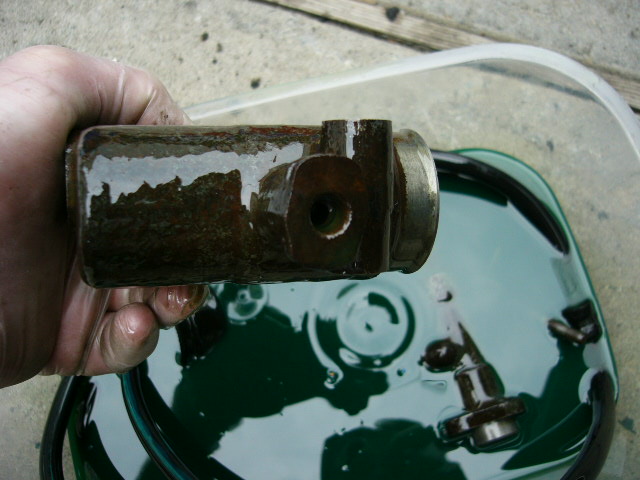

The inputs from the HP (5), Return (8) and bleeder
(vis de purge). The HP input is between
my finger & thumb.

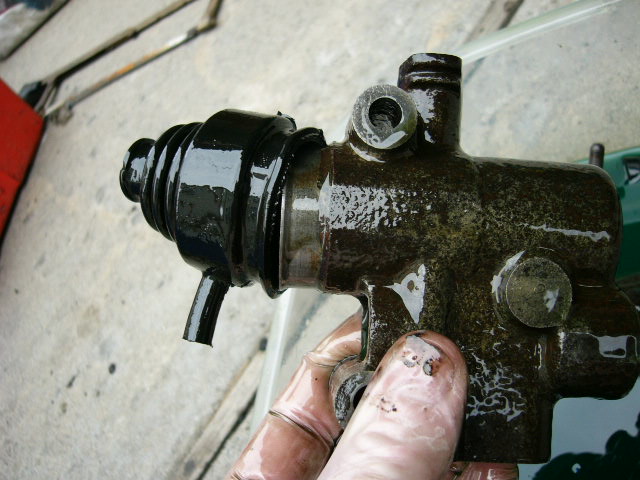

with the dust boot & leak return
Here's an exploded diagram of
the parts.

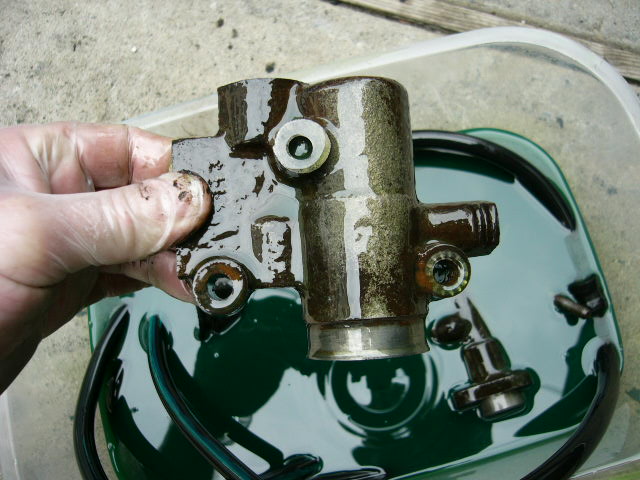

Interesting bits: 1) Master
Cylinder Body; 2) Slave Cylinder Body 3) Slide Valve;
4) Piston in Slave Cylinder; 5) Pushrod that moves clutch
throwout lever
